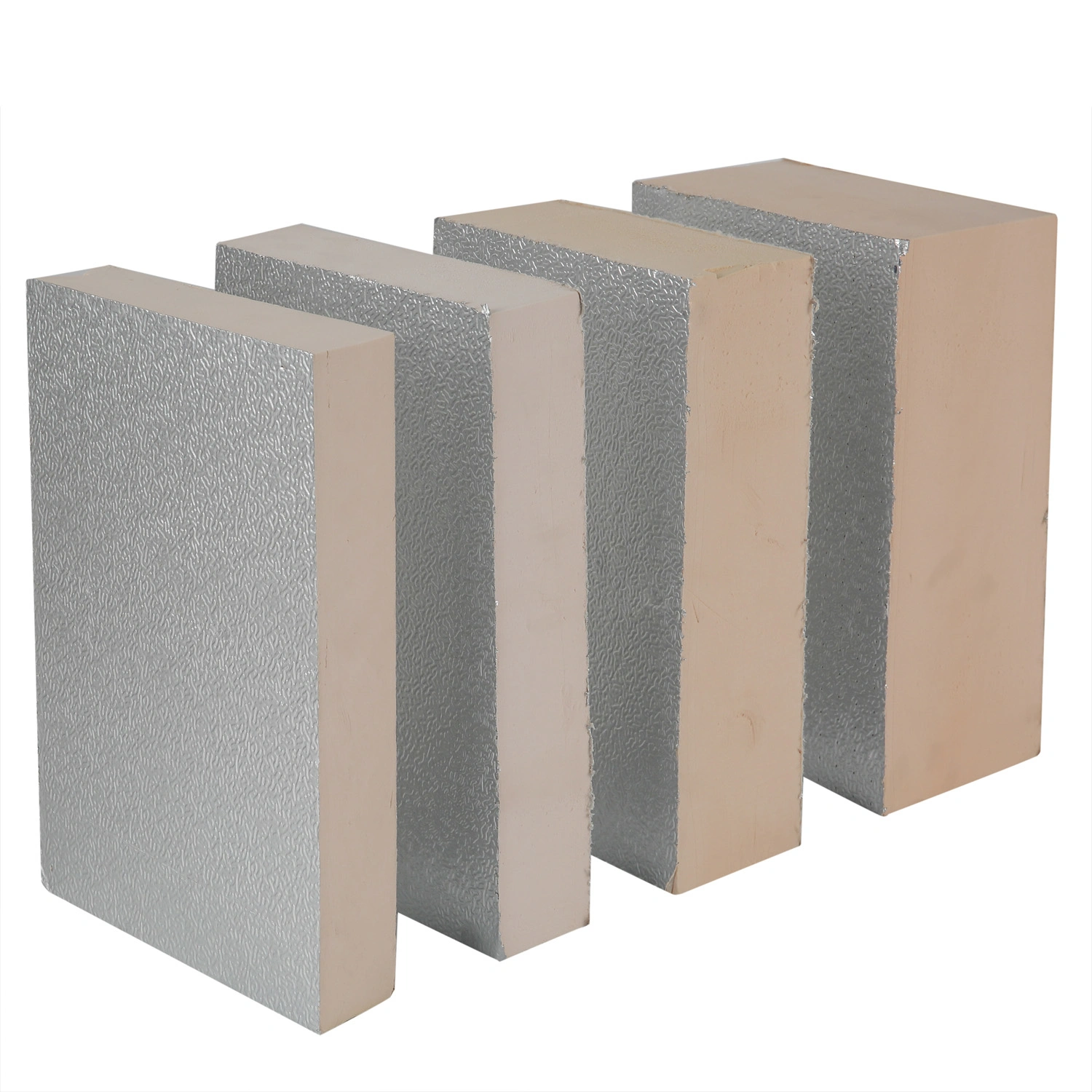

Aluminum Foil Laminated Phenolic Foam Insulation Board
Product Details

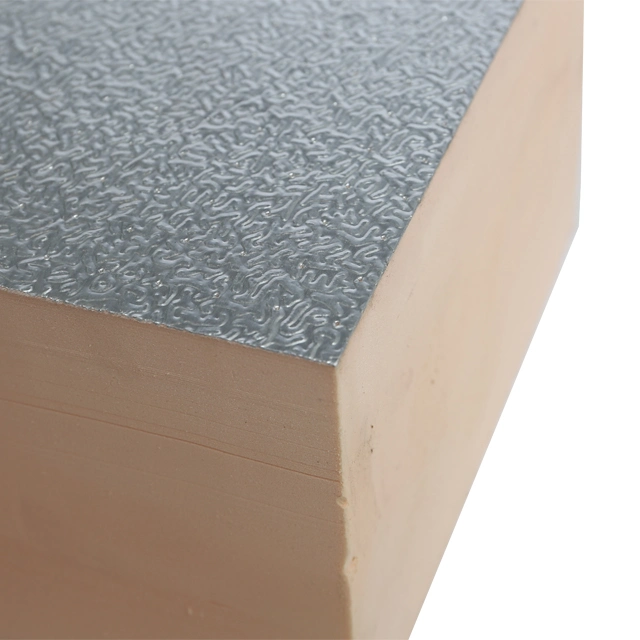

W.T aluminum foil laminated phenolic foam insulation board is a new type of high-tech composite insulation material. This product is composited by embossed aluminum foil and phenolic foam by special one-time continuous production line, with a sandwich structure. Two sides non-woven fabric are special treated, to ensure good bonding between layers. Phenolic foam insulation layer adopts advanced foaming technology with fine bubble and uniform density, strength and thermal insulation properties are guaranteed.
Technical Parameters
Characteristics of Phenolic Foam
1, Thermal Insulations
The thermal conductivity of phenolic foam is very low(0.021-0.032 W/mk), so it has good temperature convection deterrent, is excellent energy-saving material.
2, Fireproof
High oxygen percentage requirement. No dropping, no melting under high temperature but carbonized. And in a certain period of time can effectively prevent flame penetration.
3, Less Smoke Emission and Non-toxic
Low smoke emission under high high temperature, good integrity performance in toxic gas test of international standard.
4, Chemical Resistance
Extreme anti-corrosion for acidity and alkalescency.
5, Durability
Available working temperature range -140ºC to 160ºC. Stable physical feature, good aging resistance and service life can be up to 30 years.
6, Impervious
Phenolic foam has good closed-cell structure, water absorption is low, performance of prevent the penetration of vapor is strong. When it's used as thermal insulation material, it won't appear condensation.
7, Sound Absorption and Noise Reduction
Because of the closed cell foam structure help to absorb sound, phenolic insulation board has excellent sound absorption and noise reduction performance.
8, Small Density, Light Weight
Phenolic insulation board density is below 100 kg/m3, even as low as 50 kg/m3. It can reduce the weight of the building and building load, installation of system is simple and fast, and the work efficiency can be improved. Therefore, the project cost can be greatly reduce.
Customer Cases
Company Introduction
W.T Thermal Insulation Material Co.,Ltd was founded in 2002 in Jiangyin city, Jiangsu province, China. It takes only 30 minutes' drive from Wuxi International Airport and Wuxi East High-speed Railway Station.
After years of development, our W.T brand has a high visiblity in the field of thermal insulation composite material. We also gradually became the experts of thermal insulation material in HVAC system. Our research and knowledge of foaming and composite technology is second to none, so the quality of phenolic foam board, XPS insulation board and polyurethane insulation board reached the leading level in domestic. We are always devoted to providing customers with the high-quality insulation board for HVAC system, exterior wall of building and other fields.
Our dealers and distributors are all over the world, including China mainland, US, Russia, India, Australia, Japan, South Korea, U.A.E, Norway, Chile etc.
At present, average annual growth of W.T Thermal Insulation Material Co.,Ltd is over 35%, with a very exciting and brighter prospects.
Workshop
Product Details
W.T aluminum foil laminated phenolic foam insulation board is a new type of high-tech composite insulation material. This product is composited by embossed aluminum foil and phenolic foam by special one-time continuous production line, with a sandwich structure. Two sides non-woven fabric are special treated, to ensure good bonding between layers. Phenolic foam insulation layer adopts advanced foaming technology with fine bubble and uniform density, strength and thermal insulation properties are guaranteed.
Technical Parameters
| Number | Inspection Items | Technology Index |
| 1 | Standard Thickness | 20 mm, 25 mm, 30 mm |
| 2 | Length*Width(mm) | 2000*1200, 3000*1200, 4000*1200 |
| 3 | Fire Rating | A1 |
| 4 | Density of Core Material | 60-70 kg/m3 |
| 5 | Water Absorption | ≤3.7% |
| 6 | Thermal Conductivity | 0.19-0.02 W/(mK) |
| 7 | Heat Resistance | -150-----+150ºC |
| 8 | Wind Resistance Strength | ≤1500 Pa |
| 9 | Compression Strength | ≥0.18 MPa |
| 10 | Bending Strength | ≥1.1 MPa |
| 11 | Leakage Air Volume | ≤1.2 % |
| 12 | Thermal Resistance | 0.86 m2K/W |
| 13 | Smoke Density | ≤9, no toxic gas release |
| 14 | Dimension Stability | ≤2%(70±2ºC,48h) |
| 15 | Duration of Fire Resistance | >1.5h |
| 16 | Oxygen Index | ≥45 |
| 17 | Formaldehyde Emission | ≤0.5 Mg/L |
| 18 | Max Air Flow | 15 M/S |
| 19 | Stress and Deformation | Qualified |
Characteristics of Phenolic Foam
1, Thermal Insulations
The thermal conductivity of phenolic foam is very low(0.021-0.032 W/mk), so it has good temperature convection deterrent, is excellent energy-saving material.
2, Fireproof
High oxygen percentage requirement. No dropping, no melting under high temperature but carbonized. And in a certain period of time can effectively prevent flame penetration.
3, Less Smoke Emission and Non-toxic
Low smoke emission under high high temperature, good integrity performance in toxic gas test of international standard.
4, Chemical Resistance
Extreme anti-corrosion for acidity and alkalescency.
5, Durability
Available working temperature range -140ºC to 160ºC. Stable physical feature, good aging resistance and service life can be up to 30 years.
6, Impervious
Phenolic foam has good closed-cell structure, water absorption is low, performance of prevent the penetration of vapor is strong. When it's used as thermal insulation material, it won't appear condensation.
7, Sound Absorption and Noise Reduction
Because of the closed cell foam structure help to absorb sound, phenolic insulation board has excellent sound absorption and noise reduction performance.
8, Small Density, Light Weight
Phenolic insulation board density is below 100 kg/m3, even as low as 50 kg/m3. It can reduce the weight of the building and building load, installation of system is simple and fast, and the work efficiency can be improved. Therefore, the project cost can be greatly reduce.
